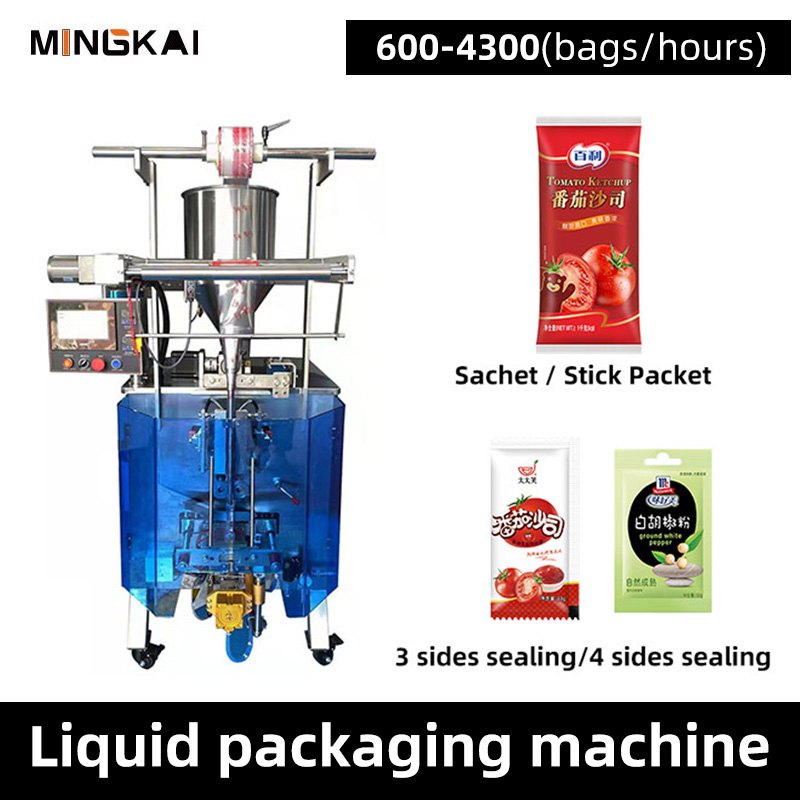

Paste Honey Stick Oil Jam Ketchup Liquid automatic 3 or 4 sides sealing sachet Packaging Machine

Description

Machine Introduction

Mingkai MKV-CHL320 Dession DS-200Y liquid packing machine can packing the liquid or paste of foodstuff, chemicals and cosmetics.
Such as shampoo, edible oil, cream, tomato paste, honey, juice. etc.
According to customer needs,the bag types can be changed：back seal, three sides seal, four side seal.

Machine Parameters

Measuring	Liquid Metering Pump
Bag Shape	Back Sealing / 3 sides sealing/4 sides sealing
Packing Speed	10-70bags/min
Roll Width	Max.320mm
Bag Length	50-200mm
Bag Width	25-140mm

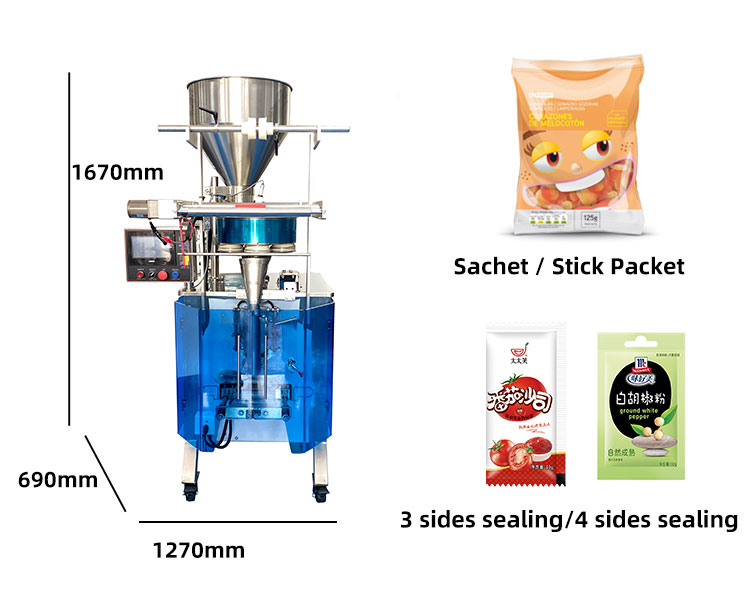

Machine Size	L)1340W)760H)1650mm
Machine Weight	≈200kg
Power	220V,50/60HZ,2.5KW
Optional Device	Air-filling device, Punching device，Date Printer

Machine Characteristic

1.The section where the material contact is stainless steel as the body of machine is optional for complete orpartial stainless steel and all out equipments have passed the CE Standard.
2.High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
3.Embedded sealing , enhanced structure of heat sealing intelligent temperature controller and excellent heat balance make all kinds of packaging materials possible with good performance, low noise, clear cutting pattern and strong sealability.
4.Packaging speed and length of bags can be set to some extent without further adjustment and parts changing.

Machine Deatils

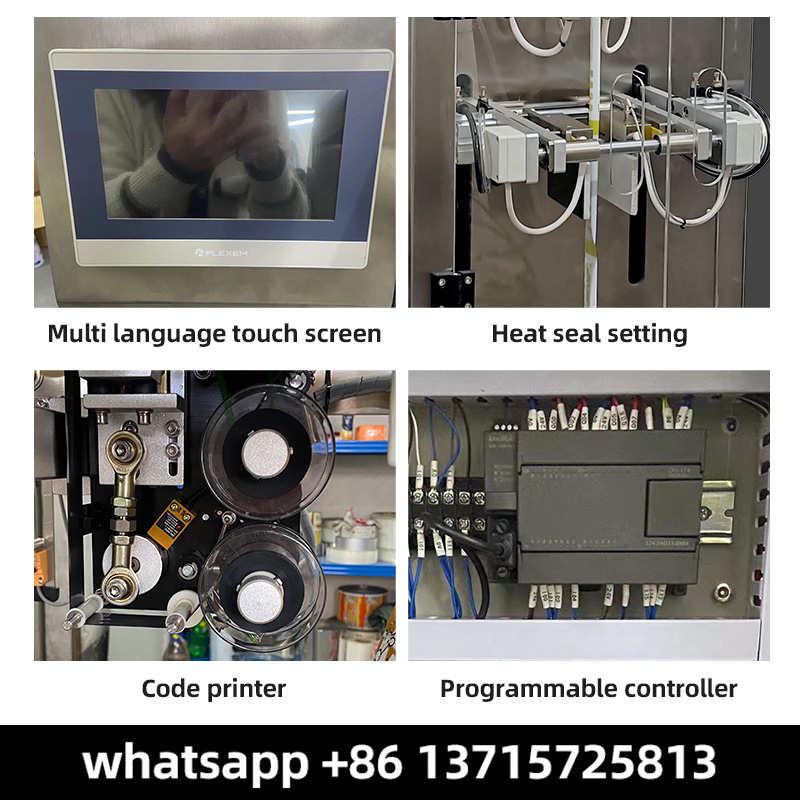

Machine Control Center

machine Interactive interface. Easy to control and adjust.
The language is customized according to customer specific requirement.
Independent temperature control device for each part of the machine, easy to adjust.

Measuring Cup Device

Adopt liquid metering pump filling device. Can be widely used in liquid. Adjust the filling weight and filling speed of the liquid by adjusting the air pressure.
The accuracy can reach ±1%.

Bag Former Device

Customized bag former according to the packaging size required by the product. If you need to use a different bag width, you just need to change it, the operation is simple.

Middle End Heating Sealing Device

Through independent control on the temperature control device, when using different packaging materials, it can be adjusted according to its melting point to ensure good sealing of the bag.

End Sealing Bag Cutting Device

The unit also has an independent temperature control unit for easy control.
The cutter unit can be changed to change different incision types as required.
Hole punching devices are also available to give your product variety.

Why Choose Us

Company Profile

Mingkai a leading manufacturer of Packaging machine and supporting facilities, which has successfully developed more than 80 kinds of packaging machines. Mingkai Packaging Machine has widely applied for different fields throughout the world, such as food/ industrial food, medicines, hotel supplies, disposable goods, rubber goods, daily appliances, hardware fittings, sporting goods, toys etc.

Professional and Strong Team

Mingkai has a professional team that can provide customers with various packaging solutions. After fully understanding the customer’s needs, we provide the most suitable packaging solution to the customer.
Then start the production of the machine. We have a strong production and processing capacity, from the customized processing of accessories to the assembly and debugging of
the machine. Finally, it is packaged and shipped, and it only takes a week to complete.

Timely and Effective After-sales Service

Choosing us is not only buying a machine, but also our professional and timely service.

1. When the machine is delivered, we will attach a video of the installation and operation of the machine, so that you can use the machine quickly.
2. Some of our machines have a one-year warranty, and we will replace them if they fail.
3. When your machine fails, we will have professional engineers to provide professional online after-sales service to help you solve the problem.
4. If the problem cannot be solved online, we will arrange an engineer to repair it on site within a week.

Buyer Feedback

We have 10 years of experience in foreign trade and export, and now our customers have spread to 90 countries all over the world.
With our high-quality machines and professional services, we have won unanimous praise from our customers.

FAQ

Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. If you don’t trust us, you can visit our company to understand our corporate culture and so on, so as to ensure the timely delivery and quality of your machines.
Q3: how to choose a machine?
Contact Kathy at + 86 13715725813, email: Kathy@autofoodpack.com Yes, we provide product type (particle, liquid, powder), product size, bag shape (roll film, prefabricated bag), product weight (5g-5kg), and we recommend the model for you.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5: if we have samples of new products, can you help analyze and design the machine?
Yes, our technical department can help analyze, design and test the new products you provide.
